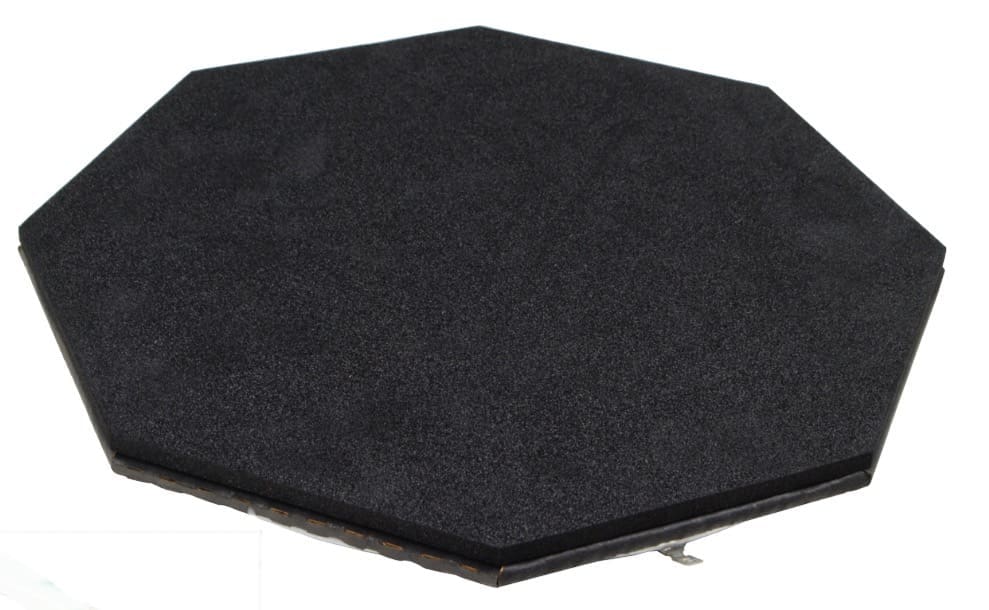

TURNTABLE, ESD DISSIPATIVE, 12.5” (318MM)
Price :
$105.25
- Ideal for working on heavier assemblies in an EPA – Watch our video
- ESD protective for use with ESD sensitive assemblies
- Durable ¼” thick Dissipative, Crosslink Polyethylene Foam
- Galvanized Steel Turntable located at the bottom
- Size: 12-1/2” Octagon (across flats)
- Very low profile – both sizes only 1” high
- Weight capacity 50 lbs / 23 Kg
- Volume Resistance 1 x 106 to < 1 x 109 ohms per ANSI/STM11.12
- Meets worksurface required limit of ANSI/ESD S20.20 per ANSI/ESD S4.1 and ESD TR53
- Electrostatic charges removed to ground via contact on grounded ESD worksurface or via ground cord from ring terminal
- Made in the United States of America
DATA SHEET
- Ideal for working on heavier assemblies in an EPA – Watch our video
- ESD protective for use with ESD sensitive assemblies
- Durable ¼” thick Dissipative, Crosslink Polyethylene Foam
- Galvanized Steel Turntable located at the bottom
- Size: 12-1/2” Octagon (across flats)
- Very low profile – both sizes only 1” high
- Weight capacity 50 lbs / 23 Kg
- Volume Resistance 1 x 106 to < 1 x 109 ohms per ANSI/STM11.12
- Meets worksurface required limit of ANSI/ESD S20.20 per ANSI/ESD S4.1 and ESD TR53
- Electrostatic charges removed to ground via contact on grounded ESD worksurface or via ground cord from ring terminal
- Made in the United States of America
DATA SHEET
| Weight | 1 lbs |
|---|
