81705E Type 3, Class 2 Static Shielding Bags – SCS Bags

81705E Type 3, Class 2 Static Shielding Bags - SCS Bags

Price :

$11.55 – $231.50

This product is on the Qualified Product Listing under the Defense Standardization Program. SCS Static Shield Bag 81705 Series are manufactured from four layers – static dissipative coating, polyester, metal and polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior is static dissipative and allows electrostatic charges to be removed when grounded. Film is qualified to MIL-PRF-81705E Type III, Class 2.

DOWNLOAD DATA SHEET

SKU 81705E Type 3, Class 2 Static Shielding Bags Categories , , , Tags , ,
Clear

This product is on the Qualified Product Listing under the Defense Standardization Program. SCS Static Shield Bag 81705 Series are manufactured from four layers – static dissipative coating, polyester, metal and polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior is static dissipative and allows electrostatic charges to be removed when grounded. Film is qualified to MIL-PRF-81705E Type III, Class 2.

Standard stock bags are converted per MIL-DTL-117H unless otherwise requested. As such, the bag markings will contain not only the required MIL-PRF-81705E markings but also the stamp shown here:

If your packaging needs do not include meeting MIL-DTL-117H, bags can be converted from qualified film per your packaging requirements.

  • Qualified to MIL-PRF-81705E Type III, Class 2; listed on the QPL under the Defense Standardization Program here
  • Film printing per MIL-PRF-81705E Section 3.6 is a buried layer that will not rub-off or become removed with chemicals like IPA
  • Standard stock bags are converted per MIL-DTL-117H
  • Metal-In film laminate 0.0028″ thick (2.8 mil)
  • Dissipative Inner Surface Rs ≥ 1 x 105 to < 1 x 1012 ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
  • Dissipative Outer Surfaces Rs < 1 x 1012 ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
  • <10 nJ discharge shielding energy limit test per MIL-PRF-81705E Method 4.6.9
  • Lead-free RoHS 2, REACH and Conflict Minerals Compliant
  • Made in the United States of America

DOWNLOAD DATA SHEET

UOM for all variations is 100 per pack.   Call for custom sizes or for order of 1000 .

IDSKUUomPriceBuyhf:tax:product_cat
938518x20 - 8171820 Open Top Static Shielding Bag100 Bags$108.85
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938724x30 -  8172430 Open Top Static Shielding Bag100 Bags$231.50
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93799x12 - 817912 Open Top Static Shielding Bags100 Bags$42.00
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938010x12 - 8171012 Open Top Static Shielding Bag100 Bags$48.20
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938112x12 - 8171212 Open Top Static Shielding Bag100 Bags$64.50
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938212x16 - 8171216 Open Top Static Shielding Bag100 Bags$67.15
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938312x18 - 8171218 Open Top Static Shielding Bags100 Bags$78.50
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938415x18 - 8171518 Open Top Static Shielding Bags100 Bags$101.95
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
938618x24 - 8171824 Open Top Static Shielding Bag100 Bags$145.95
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93788x12 - 817812 Open Top Static Shielding Bags100 Bags$50.00
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93778x10 - 817Z810 Zip Top Static Shielding Bags100 Bags$55.50
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93758x10 - 817810 Open Static Shielding Bags100 Bags$36.10
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93748x8 - 81788 Open Top Static Shielding Bags100 Bags$27.40
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93736x8 - 81768 Open Top Shielding Bags100 Bags$21.35
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93725x8 - 81758 Open Top Static Shielding Bags100 Bags$21.15
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93714x8 - 81748 Open Top Static Shielding Bags100 Bags$17.00
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93704x6 - 817Z46 Zip Top Static Shielding Bags100 Bags$24.95
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93693x5 - 817Z35 Zip Top Static Shielding Bag100 Bags$20.55
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
93683x5 - 81735 Open Top Static Shielding Bags100 Bags$11.55
81705-static-shielding-bags packaging-foil-store-categories store-categories static-shielding-bags-1 root-catalog
Weight 1 lbs
Packaging

Related products

  • Placeholder
    Dri-Shield 3400, Packaging & Foil, Moisture Barrier Bags, Store Categories

    Moisture Barrier Bag – Dri-Shield 3400 – D341024

    $114.29     Add to cart
    Placeholder

    Moisture Barrier Bag – Dri-Shield 3400 – D341024

    $114.29

    SKU: Moisture Barrier Bag - Dri-Shield 3400 - D341024 Categories: , , , Tags: ,

    Part # D341024

    THIS ITEM IS CUSTOM MADE AND THEREFORE NOT REFUNDABLE.

    MINIMUM QUANTITY OF 10 PACKS OF 100

    MOISTURE BARRIER BAG, DRI-SHIELD 3400, 10×24, 100 EA

    This foil moisture barrier bag is designed to provide protection for ESD sensitive and moisture sensitive electronics, typically SMT (Surface Mount Technology) items. Best practice is to use with Desiccant and a Humidity Indicator Card. The bags are heat sealable and suitable for vacuum packaging. Bags are printed with ESD protective and moisture-sensitive warning symbols, and a lot code for traceability.

  • Placeholder
    Dri-Shield 3400, Packaging & Foil, Moisture Barrier Bags, Store Categories

    Moisture Barrier Bag – Dri-Shield 3400 – D341016

    $88.12     Add to cart
    Placeholder

    Moisture Barrier Bag – Dri-Shield 3400 – D341016

    $88.12

    SKU: Moisture Barrier Bag - Dri-Shield 3400 - D341016 Categories: , , , Tags: ,

    Part # D341016

    THIS ITEM IS CUSTOM MADE AND THEREFORE NOT REFUNDABLE.

    MINIMUM QUANTITY OF 10 PACKS OF 100

    MOISTURE BARRIER BAG, DRI-SHIELD 3400, 10×16, 100 EA

    This foil moisture barrier bag is designed to provide protection for ESD sensitive and moisture sensitive electronics, typically SMT (Surface Mount Technology) items. Best practice is to use with Desiccant and a Humidity Indicator Card. The bags are heat sealable and suitable for vacuum packaging. Bags are printed with ESD protective and moisture-sensitive warning symbols, and a lot code for traceability.

  • 81705 Moisture Barrier Bags, Packaging & Foil, Moisture Barrier Bags, Store Categories

    81705 Type 1 Class 1 Moisture Barrier Bag

    $36.54 – $860.54
    Add to quote

    81705 Type 1 Class 1 Moisture Barrier Bag

    $36.54 – $860.54

    SKU: 81705 Type 1 Class 1 Moisture Barrier Bag Categories: , , , Tags: , ,

    This product is on the Qualified Product Listing under the Defense Standardization Program. Check our listing here.

    SCS ESD Barrier Bag 817I Series are manufactured from CADPAK ESD with four layers – Met-PET, Foil, PE, ESD- Sealant. Barrier Material is water vapor proof, electrostatic protective, electrostatic and electromagnetic shielding, flexible, and heat-sealable. Film is qualified to MIL-PRF-81705E Type I, Class 1.

    PRICE IS PER 100 BAGS

    DOWNLOAD DATA SHEET

    Clear
  • Laddawn Industrial Clear Poly Tubing-0
    Bags & Tubing, Packaging & Foil, Store Categories, Industrial Tubing, Google Merchant

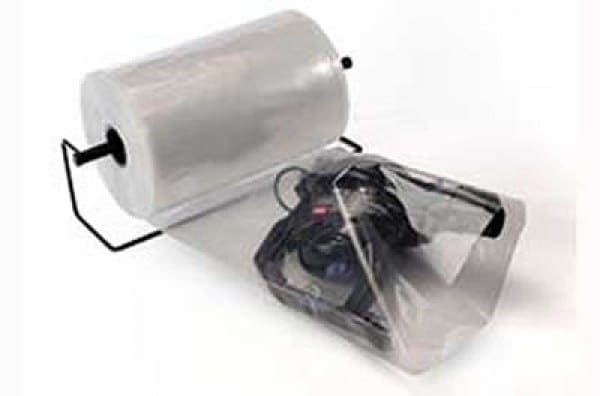

    Laddawn Industrial Clear Poly Tubing
